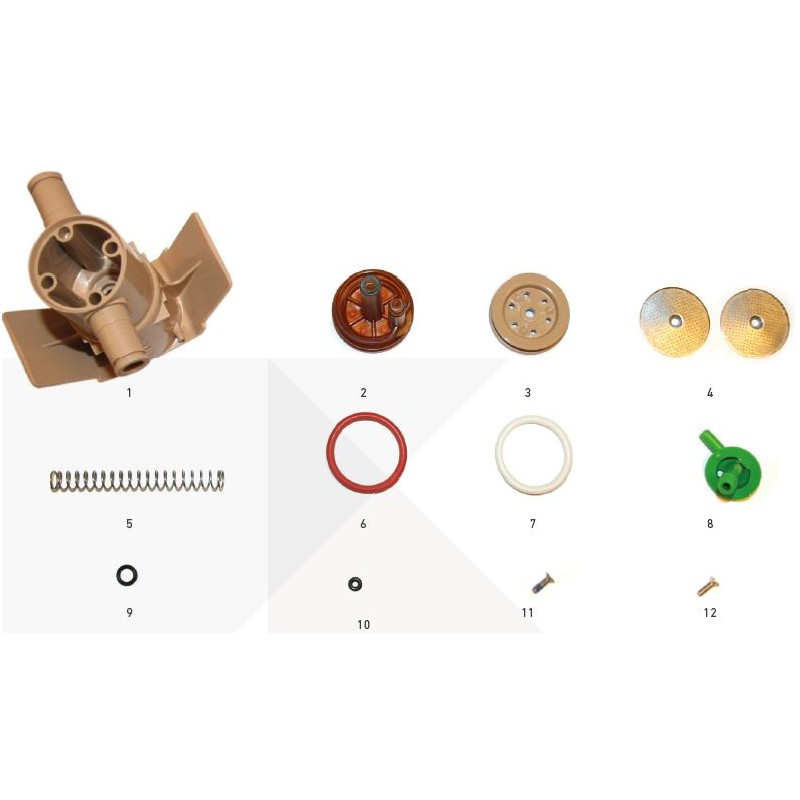

Sada pro repasi NECTA Z4000 38mm

1 BREWING CHAMBER ø 38 mm
2 UPPER SHOWER HOLDER PISTON ø 38 mm
3 LOWER SHOWER HOLDER PISTON ø 38 mm
4 SHOWER SCREEN ø 34 mm
5 SPRING ø 9x80 mm for piston back slide
6 O-RING 04118 RED for the lower piston
7 O-RING 04112 WHITE SILICONE for the lower piston
8 COFFEE NOZZLE
9 O-RING 02025 EPDM
10 O-RING 02018 EPDM
11 COUNTERSUNK SCREW CONICAL TIPH M3X10 + WICKING
12 COUNTERSUNK FLAT HEAD SCREW M3x10

Vhodné pro modely:

Lavazza – LB 3600 Canto Touch X2
CANTO
CANTO P
CANTO Touch Dual Cup
CANTO Touch Espresso Fresh Brew
CANTO Double Cup Blue
CONCERTO
CONCERTO Blue
CONCERTO Plus
CONCERTO Touch
CONCERTO Touch Plus
KARISMA Upgrade
MAESTRO Touch Dual Cup
OPERA
OPERA Touch Plus
SOLISTA
